6° parallel beam
High-intensity output: When used with Evoke 2400B, it delivers up to 21 times the illuminance of the light only.
Ideal for long-distance lighting on large sets: 22420 lux@10m and 5749 lux@20m (with Evoke 2400B, 5600K).
Lightweight at only 9.37kg/20.66lb
Integrates an easy-to-install snoot made of carbon fiber with high strength.
Compatible with Evoke series NL mount light fixtures, including Evoke 900C/1200/1200B/2400B.
Weather resistance: Can be used alongside Evoke series light fixtures in dusty, rainy, or snowy environments, ensuring reliable operation in outdoor shooting.
High-intensity output: When used with Evoke 2400B, it delivers up to 21 times the illuminance of the light only.
Ideal for long-distance lighting on large sets: 22420 lux@10m and 5749 lux@20m (with Evoke 2400B, 5600K).
Lightweight at only 9.37kg/20.66lb
Integrates an easy-to-install snoot made of carbon fiber with high strength.
Compatible with Evoke series NL mount light fixtures, including Evoke 900C/1200/1200B/2400B.
Weather resistance: Can be used alongside Evoke series light fixtures in dusty, rainy, or snowy environments, ensuring reliable operation in outdoor shooting.
Application possibilities:
Artificial sunlight: When used with Evoke 2400B, it can replicate the high-quality sunlight output.
Simulating searchlight: Ideal for scenes requiring a searchlight source.
Overview

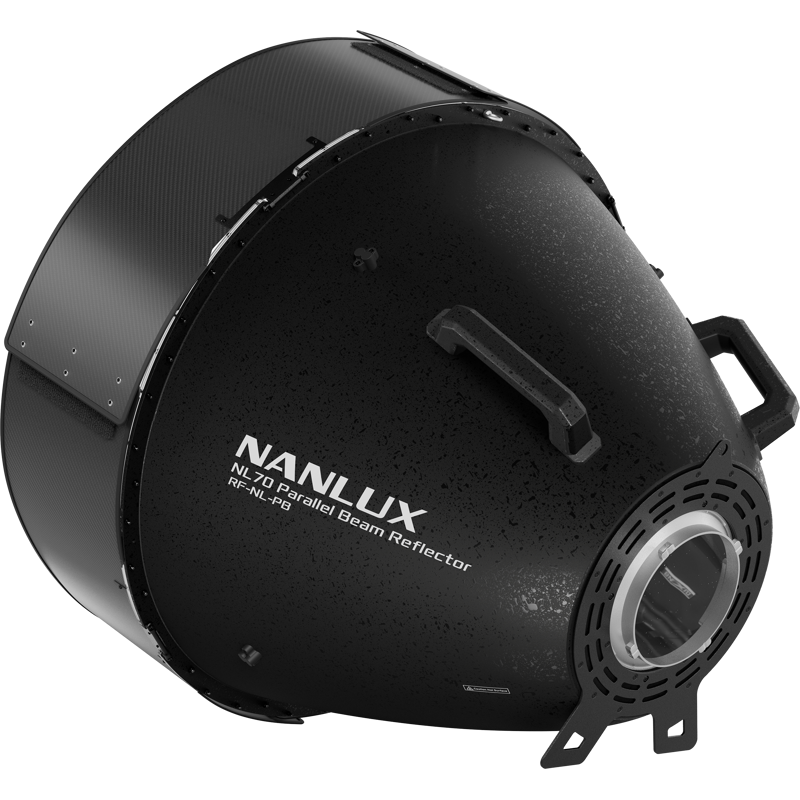

To meet the growing demand for diverse lighting solutions, NANLUX introduces the new NL70 Parallel Beam Reflector for the Evoke series. This accessory excels at simulating sunlight, creating special beam effects, and achieving high-efficiency spotlight. It is especially suited for medium to large film and television projects.
Specifications:
Model: RF-NL-PB
Beam Angle: 6°
Compatible Mount: NL Mount
Compatible Product: Evoke 900C / 1200 / 1200B / 2400B
Product Weight
NL Mount Parallel Beam Reflector: 9.37kg
Carrying Bag: 9.22kg
Product Size
Reflector with snoot retracted: φ774 x 499mm
Reflector with snoot installed: φ774 x 710.8mm
Carrying Bag: φ860 x 550mm
Illumination (lux / fc)
Evoke 900C + RF-NL-PB
3200K: 5M - 22370 lux / 2078 fc
3200K: 10M - 9450 lux / 878 fc
3200K: 15M - 3430 lux / 319 fc
3200K: 20M - 1989 lux / 185 fc
5600K: 5M - 22940 lux / 2131 fc
5600K: 10M - 3415 lux / 317 fc
5600K: 15M - 9524 lux / 885 fc
5600K: 20M - 1997 lux / 186 fc
Evoke 1200B + RF-NL-PB
3200K: 5M - 69000 lux / 6410 fc
3200K: 10M - 20810 lux / 1933 fc
3200K: 15M - 7087 lux / 658 fc
3200K: 20M - 3975 lux / 369 fc
5600K: 5M - 95040 lux / 8829 fc
5600K: 10M - 25080 lux / 2330 fc
5600K: 15M - 8607 lux / 800 fc
5600K: 20M - 4706 lux / 437 fc
Evoke 2400B + RF-NL-PB
3200K: 5M - 65400 lux / 6076 fc
3200K: 10M - 19590 lux / 1820 fc
3200K: 15M - 8861 lux / 823 fc
3200K: 20M - 4991 lux / 464 fc
5600K: 5M - 76300 lux / 7088 fc
5600K: 10M - 22420 lux / 2083 fc
5600K: 15M - 10160 lux / 944 fc
5600K: 20M - 5749 lux / 534 fc
Nanlux NL70 6° Parallel Beam Reflector
Starting at 99 €
Prices per day excluding vat.
6° parallel beam
High-intensity output: When used with Evoke 2400B, it delivers up to 21 times the illuminance of the light only.
Ideal for long-distance lighting on large sets: 22420 lux@10m and 5749 lux@20m (with Evoke 2400B, 5600K).
Lightweight at only 9.37kg/20.66lb
Integrates an easy-to-install snoot made of carbon fiber with high strength.
Compatible with Evoke series NL mount light fixtures, including Evoke 900C/1200/1200B/2400B.
Weather resistance: Can be used alongside Evoke series light fixtures in dusty, rainy, or snowy environments, ensuring reliable operation in outdoor shooting.
High-intensity output: When used with Evoke 2400B, it delivers up to 21 times the illuminance of the light only.
Ideal for long-distance lighting on large sets: 22420 lux@10m and 5749 lux@20m (with Evoke 2400B, 5600K).
Lightweight at only 9.37kg/20.66lb
Integrates an easy-to-install snoot made of carbon fiber with high strength.
Compatible with Evoke series NL mount light fixtures, including Evoke 900C/1200/1200B/2400B.
Weather resistance: Can be used alongside Evoke series light fixtures in dusty, rainy, or snowy environments, ensuring reliable operation in outdoor shooting.
Application possibilities:
Artificial sunlight: When used with Evoke 2400B, it can replicate the high-quality sunlight output.
Simulating searchlight: Ideal for scenes requiring a searchlight source.
Overview
To meet the growing demand for diverse lighting solutions, NANLUX introduces the new NL70 Parallel Beam Reflector for the Evoke series. This accessory excels at simulating sunlight, creating special beam effects, and achieving high-efficiency spotlight. It is especially suited for medium to large film and television projects.
Specifications:
Model: RF-NL-PB
Beam Angle: 6°
Compatible Mount: NL Mount
Compatible Product: Evoke 900C / 1200 / 1200B / 2400B
Product Weight
NL Mount Parallel Beam Reflector: 9.37kg
Carrying Bag: 9.22kg
Product Size
Reflector with snoot retracted: φ774 x 499mm
Reflector with snoot installed: φ774 x 710.8mm
Carrying Bag: φ860 x 550mm
Illumination (lux / fc)
Evoke 900C + RF-NL-PB
3200K: 5M - 22370 lux / 2078 fc
3200K: 10M - 9450 lux / 878 fc
3200K: 15M - 3430 lux / 319 fc
3200K: 20M - 1989 lux / 185 fc
5600K: 5M - 22940 lux / 2131 fc
5600K: 10M - 3415 lux / 317 fc
5600K: 15M - 9524 lux / 885 fc
5600K: 20M - 1997 lux / 186 fc
Evoke 1200B + RF-NL-PB
3200K: 5M - 69000 lux / 6410 fc
3200K: 10M - 20810 lux / 1933 fc
3200K: 15M - 7087 lux / 658 fc
3200K: 20M - 3975 lux / 369 fc
5600K: 5M - 95040 lux / 8829 fc
5600K: 10M - 25080 lux / 2330 fc
5600K: 15M - 8607 lux / 800 fc
5600K: 20M - 4706 lux / 437 fc
Evoke 2400B + RF-NL-PB
3200K: 5M - 65400 lux / 6076 fc
3200K: 10M - 19590 lux / 1820 fc
3200K: 15M - 8861 lux / 823 fc
3200K: 20M - 4991 lux / 464 fc
5600K: 5M - 76300 lux / 7088 fc
5600K: 10M - 22420 lux / 2083 fc
5600K: 15M - 10160 lux / 944 fc
5600K: 20M - 5749 lux / 534 fc

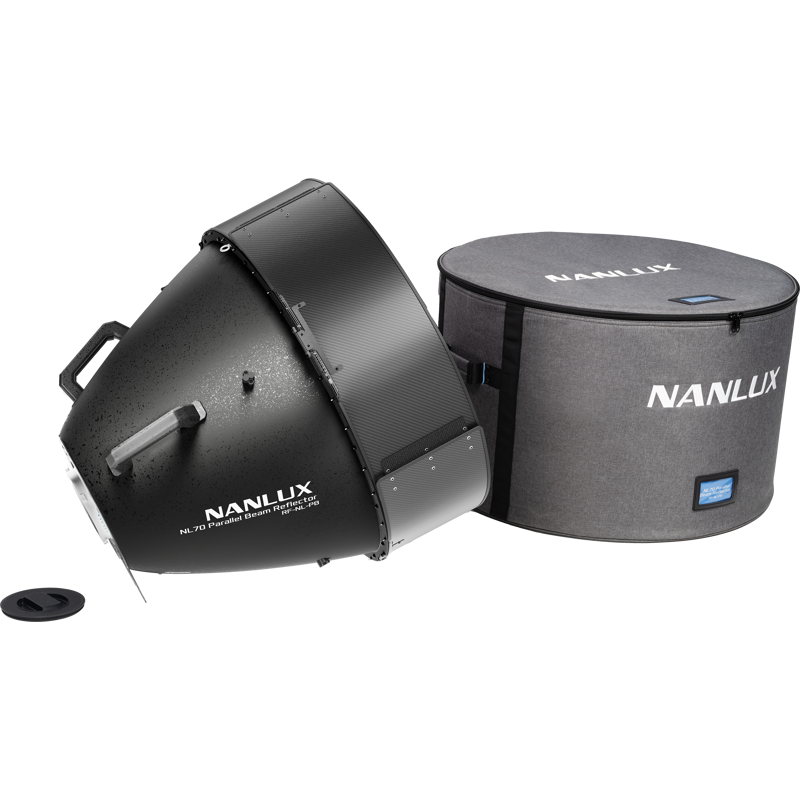

Included in the box
NL70 Parallel Beam Reflector × 1
Plastic Protective Cover × 1
User Manual × 1
Carrying Bag × 1
TOTAL WEIGHT: 9.37 KG
