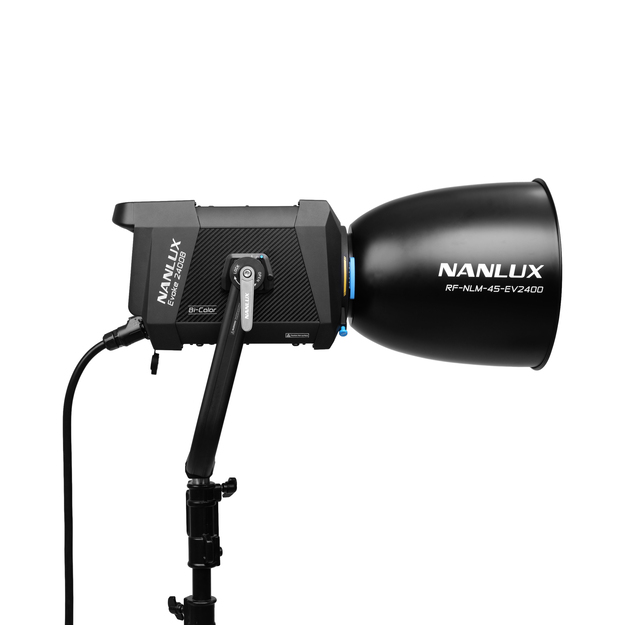

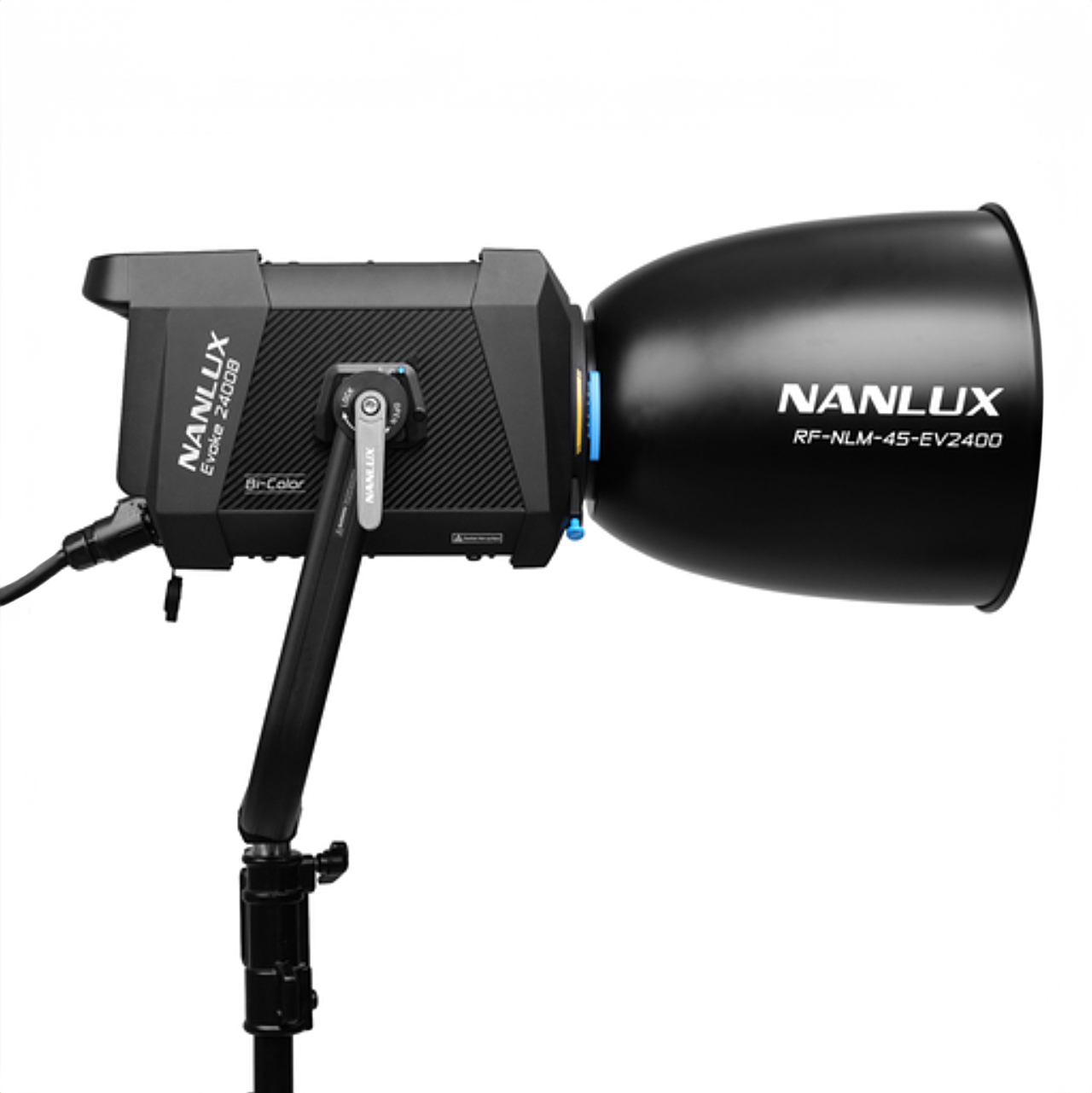

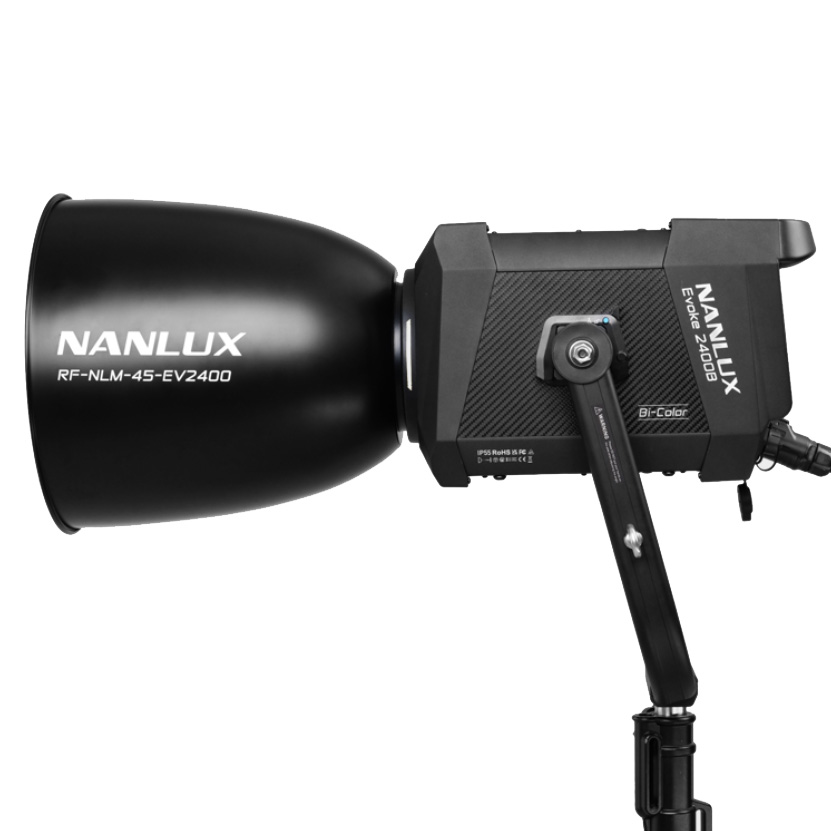

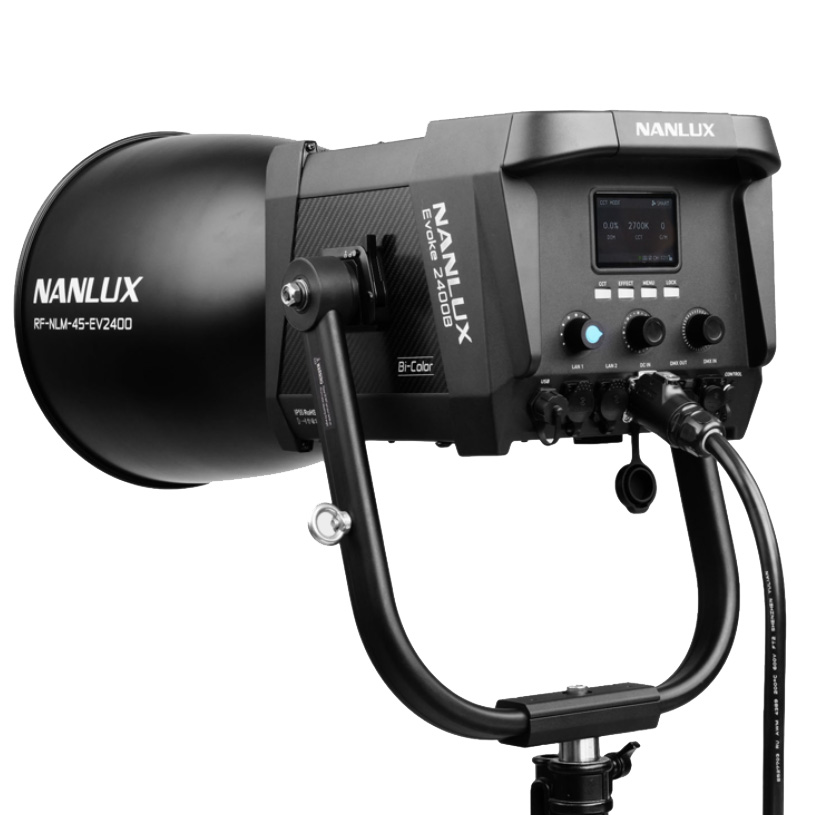

NANLUX Evoke 2400B Spot Light with 45° Reflector
The Nanlux Evoke 2400B is a revolutionary new bi-color LED light that offers the equivalent output of a 10K tungsten fixture. It is built with 2400 watts of rated power and features a wide CCT range with G/M±80 adjustment. The light is also IP55 rated, meaning it is dust and water resistant and can be used in severe weather conditions.
Function
- CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80
- EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.
- Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF.
- The maximum output is 100% when the fan is in SMART or FULL SPEED state.
- The maximum output is 50% when the fan is in LOW SPEED state.
- The maximum output is 10% when the fan is OFF.
- Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
- Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu.
- Two language options: English and Chinese.
- Support firmware update.
- Bluetooth reset function.
Structure
- Separate design of light fixture and power supply, high power output with ultra-bright output.
- 3.5 inch screen, with four buttons and three knobs.
- Robust and durable metal material construction, with IP55 rating.
- Quick release design of yoke with eye bolt, enable Evoke 2400B to rotate in 360-degree.
- Integral disassembly design makes it convenient for maintenance and replacing parts.
- Quick release plate & clamp for the power supply, with clamping range of φ15-50mm.
- Evoke 2400B is built with NL mount and optical contacts, makes it compatible with NL mount accessories and modifiers that with optical contacts.
Control
- On-board control: Evoke 2400B can be operated through the control panel on the fixture.
- Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP.
- 2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box.
- DMX/RDM: Support DMX/RDM control.
- LumenRadio: Built-in Lumenradio module for remote control.
- Wireless control on/off function.
- Reserved wired control function.
- Support Art-Net and sACN control protocol.
- LED total power: 1200W
- Input voltage/current: DC48V/25A Max
- IP54 Weatherproof
- AC100-240V 50-60Hz
- Beam Angle: 120°
- LED Type: W
- CCT : 5600K
- CRI/TLCI : 96/97
- Weight: 7 kg (Fixture with Yoke); 10 kg (Balast)
- Dimming : 0 - 100%
- Control : Bluetooth, 2.4G, DMX, RDM, LumenRadio
Nanlux Evoke 2400B
NANLUX Evoke 2400B Spot Light with 45° Reflector
The Nanlux Evoke 2400B is a revolutionary new bi-color LED light that offers the equivalent output of a 10K tungsten fixture. It is built with 2400 watts of rated power and features a wide CCT range with G/M±80 adjustment. The light is also IP55 rated, meaning it is dust and water resistant and can be used in severe weather conditions.
Function
- CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80
- EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.
- Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF.
- The maximum output is 100% when the fan is in SMART or FULL SPEED state.
- The maximum output is 50% when the fan is in LOW SPEED state.
- The maximum output is 10% when the fan is OFF.
- Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
- Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu.
- Two language options: English and Chinese.
- Support firmware update.
- Bluetooth reset function.
Structure
- Separate design of light fixture and power supply, high power output with ultra-bright output.
- 3.5 inch screen, with four buttons and three knobs.
- Robust and durable metal material construction, with IP55 rating.
- Quick release design of yoke with eye bolt, enable Evoke 2400B to rotate in 360-degree.
- Integral disassembly design makes it convenient for maintenance and replacing parts.
- Quick release plate & clamp for the power supply, with clamping range of φ15-50mm.
- Evoke 2400B is built with NL mount and optical contacts, makes it compatible with NL mount accessories and modifiers that with optical contacts.
Control
- On-board control: Evoke 2400B can be operated through the control panel on the fixture.
- Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP.
- 2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box.
- DMX/RDM: Support DMX/RDM control.
- LumenRadio: Built-in Lumenradio module for remote control.
- Wireless control on/off function.
- Reserved wired control function.
- Support Art-Net and sACN control protocol.
- LED total power: 1200W
- Input voltage/current: DC48V/25A Max
- IP54 Weatherproof
- AC100-240V 50-60Hz
- Beam Angle: 120°
- LED Type: W
- CCT : 5600K
- CRI/TLCI : 96/97
- Weight: 7 kg (Fixture with Yoke); 10 kg (Balast)
- Dimming : 0 - 100%
- Control : Bluetooth, 2.4G, DMX, RDM, LumenRadio
Included in the box
1x Lamphead w/ Cap; 1x Straight Yoke; 1x Ballast; 1x Powercord; 1x Signal Cable 5m; 1x Remonte Control; 1x Reflector 45°, 1x Transport Case.
