Through clever design, the metal body of the PavoSlim 240B/240C can be quickly folded and unfolded in seconds. Mounting sockets along the fold on the rear of the fixture are combined with a universal or baby pin holder to ensure that it is securely locked into place when unfolded. This forms a sturdy and durable structure. Users can quickly and assuredly use the PavoSlim 240B and 240C for interviews, in medium-sized studios, and for demanding film and television productions.
260W - Rated Power
3.44kg/3.65kg - Weight
2.86cm - Thickness (unfolded)
Efficient Design, Maximum Output
The Nanlite team has developed a dedicated optical system for the individual emitters of the PavoSlim lights. Combining efficient heat dissipation and excellent optical design, the PavoSlim 240B/240C achieve 4 times output compared to the average output of conventional mat light products.
PavoSlim 240B 22990 lux@1m Light only / 5600K
PavoSlim 240C 24970 lux@1m Light only / 5600K
Rapid Deployment
Every element of the PavoSlim is designed for rapid deployment. Because every minute counts on set, the PavoSlim 240B/240C can be quickly unfolded, secured and locked into place in moments. The accessories are also designed with the same philosophy for easy and rapid set-up.

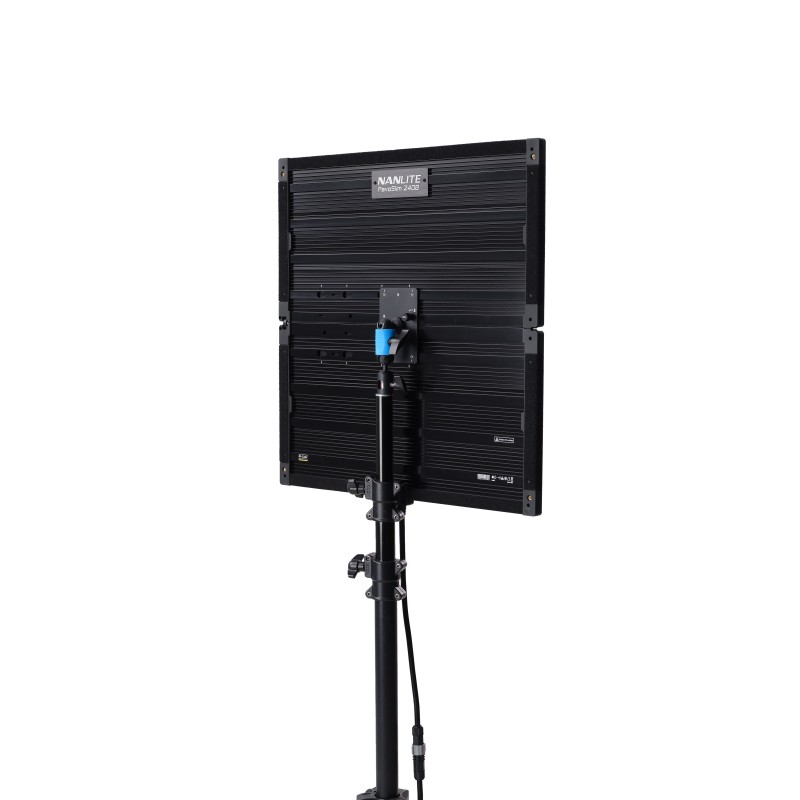

The back of each PavoSlim 240B/240C fixture has multiple 1/4"-20 sockets for flexible mounting in various situations. The control unit is designed with compatibility for mounting via a quick-release plate, which can be used with the included quick-release clamp for mounting to light stands or truss (also found on NANLITE Forza II series fixtures). The control unit has a useful hand carry strap which can also be used to hang it from a light stand.
Multiple Power Options, Deploy Anywhere
The PavoSlim 240B/240C can be powered by AC power, DC power and V-mount batteries. All power supply methods support full power output, making the PavoSlim 240B/240C suitable for both indoor and outdoor scenarios.
The PavoSlim 240B/240C also supports hot swapping among different power supply modes, allowing for continuous shooting without interruption.
AC power supply
DC power supply (48V)
V-mount battery (14.4-14.8V)*
V-mount battery (26V)*
*Before hot swapping, ensure that the brightness of the PavoSlim 240B/240C is set within the power range of the respective power supply method. The corresponding power output ranges for different power supply methods are as follows:
14.4-14.8V V-mount battery × 1: 50% of max output,
14.4-14.8V V-mount battery × 2: full power output,
26V V-mount battery × 1: 80% of max output,
26V V-mount battery × 2: full power output,
14.4-14.8V V-mount battery × 1 and 26V V-mount battery × 1: full power output.

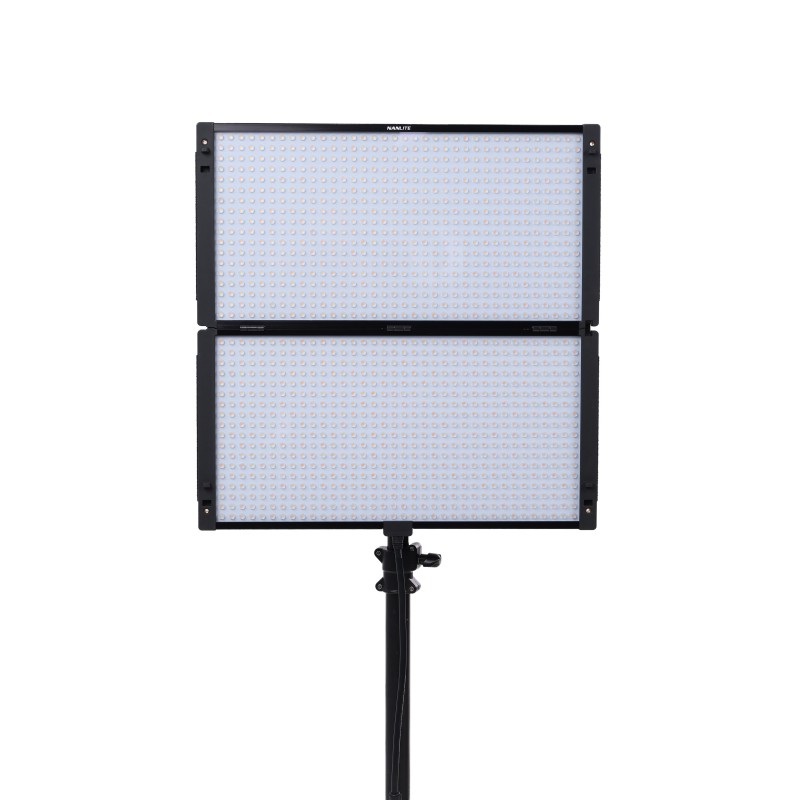

PavoSlim 240C LED panel
Through clever design, the metal body of the PavoSlim 240B/240C can be quickly folded and unfolded in seconds. Mounting sockets along the fold on the rear of the fixture are combined with a universal or baby pin holder to ensure that it is securely locked into place when unfolded. This forms a sturdy and durable structure. Users can quickly and assuredly use the PavoSlim 240B and 240C for interviews, in medium-sized studios, and for demanding film and television productions.
260W - Rated Power
3.44kg/3.65kg - Weight
2.86cm - Thickness (unfolded)
Efficient Design, Maximum Output
The Nanlite team has developed a dedicated optical system for the individual emitters of the PavoSlim lights. Combining efficient heat dissipation and excellent optical design, the PavoSlim 240B/240C achieve 4 times output compared to the average output of conventional mat light products.
PavoSlim 240B 22990 lux@1m Light only / 5600K
PavoSlim 240C 24970 lux@1m Light only / 5600K
Rapid Deployment
Every element of the PavoSlim is designed for rapid deployment. Because every minute counts on set, the PavoSlim 240B/240C can be quickly unfolded, secured and locked into place in moments. The accessories are also designed with the same philosophy for easy and rapid set-up.
The back of each PavoSlim 240B/240C fixture has multiple 1/4"-20 sockets for flexible mounting in various situations. The control unit is designed with compatibility for mounting via a quick-release plate, which can be used with the included quick-release clamp for mounting to light stands or truss (also found on NANLITE Forza II series fixtures). The control unit has a useful hand carry strap which can also be used to hang it from a light stand.
Multiple Power Options, Deploy Anywhere
The PavoSlim 240B/240C can be powered by AC power, DC power and V-mount batteries. All power supply methods support full power output, making the PavoSlim 240B/240C suitable for both indoor and outdoor scenarios.
The PavoSlim 240B/240C also supports hot swapping among different power supply modes, allowing for continuous shooting without interruption.
AC power supply
DC power supply (48V)
V-mount battery (14.4-14.8V)*
V-mount battery (26V)*
*Before hot swapping, ensure that the brightness of the PavoSlim 240B/240C is set within the power range of the respective power supply method. The corresponding power output ranges for different power supply methods are as follows:
14.4-14.8V V-mount battery × 1: 50% of max output,
14.4-14.8V V-mount battery × 2: full power output,
26V V-mount battery × 1: 80% of max output,
26V V-mount battery × 2: full power output,
14.4-14.8V V-mount battery × 1 and 26V V-mount battery × 1: full power output.

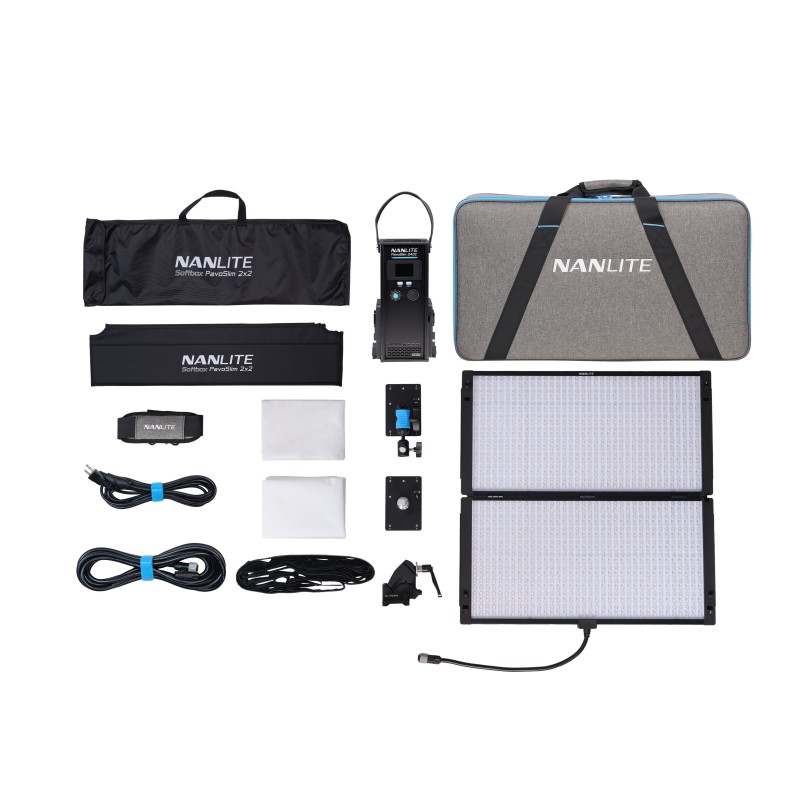

Included in the box
PavoSlim 240B × 1,
Control Unit × 1,
Universal Holder × 1,
DC Connection Cable 5M × 1,
AC Power Cable 4.5M × 1,
Softbox × 1, Diffuser × 2 (Lite Diffuser × 1+Standard Diffuser × 1)，
Eggcrate × 1,
Carrying Bag × 1,
User Manual × 1
